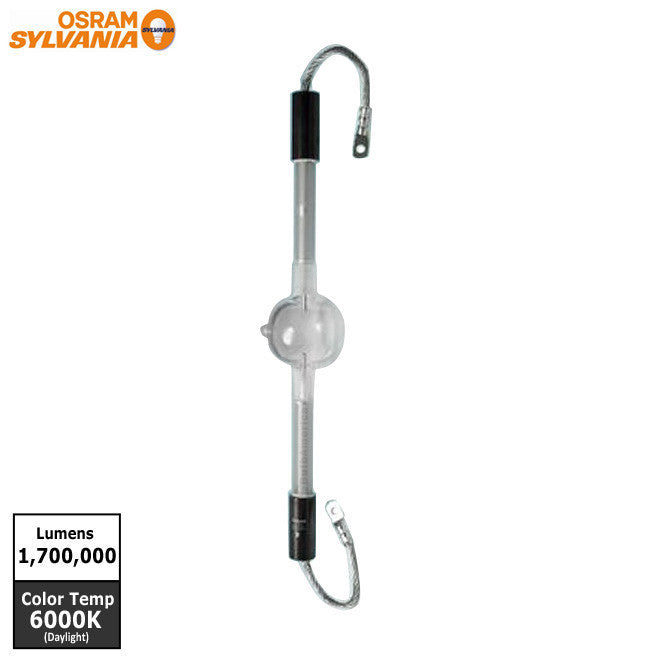

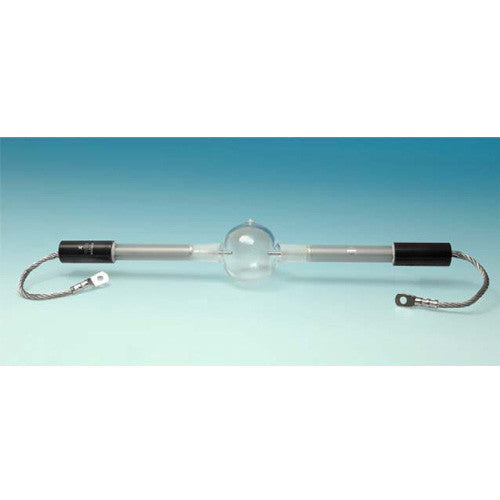

The new OSRAM high-output, double-ended HMI lamps ensure performance when it is needed. With a spectrum that simulates daylight, "HMI" lamps are especially suitable for film and television shooting. Incorporating a new multiple foil sealing system on the lead-ins, along with the reliable XS Technology, ensures greater longevity with enhanced thermal resistance, The Osram double-ended HMI bulbs result in a longer average service life of 375 hours



Key Features & Benefits

- New four foil technology provides a 25% increase in life. - HMI 24000W/DXS is the brightest HMI lamp on the market, at over 2,300,000 lumens. - High color rendering index (CRI>90) typical of all HMI lamps. - Excellent hot restart capability - eXtreme Seal (XS) technology allows up to 450C at the pinch seal

Abbreviation Name	HMI18000WDXS 1/CS 1/SKU
Arc Length (in)	1.73
Base	S30
Bulb Type	High Intensity Discharge Bulbs (HID)
Color Rendering Index (CRI)	90
Color Temperature (K)	6000
Cooling	Convection
Current (Amp)	88
Diameter (in)	3.03
Electrode Gap (cold)	1.73 in
Ignition Voltage (kV)	20/65
Initial Lumens (LM)	1700000
Maximum Overall Length (in)	19.69
Operating Position	Horizontal ±15º, p15
Rated Life (Hours)	375
Shape	Double-Ended
Voltage (V)	over 130V
Voltage (V)	225
Wattage (W)	18000
Watt (W)	over 1000W
