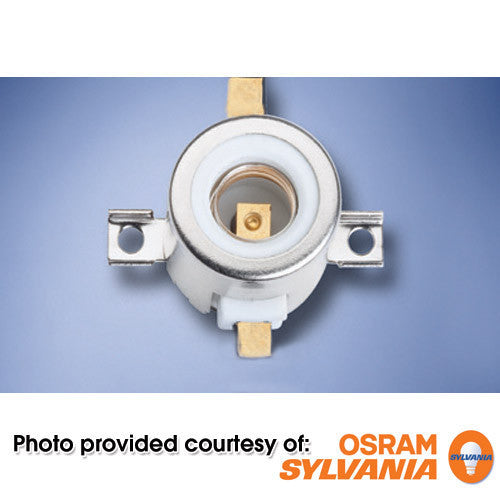

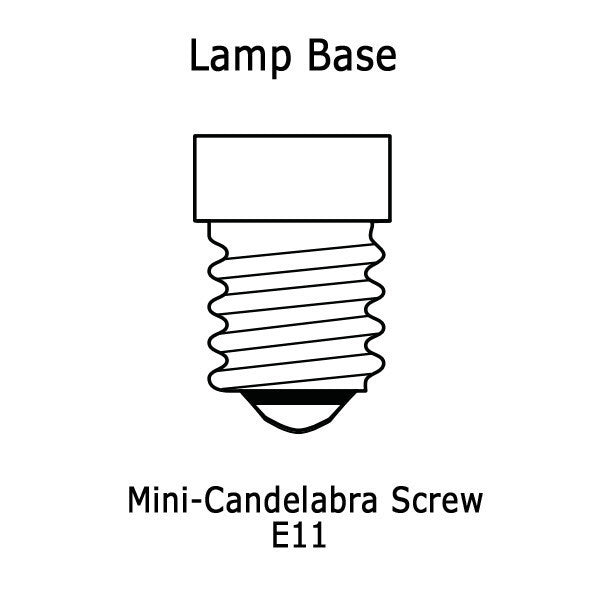

S4 1 Steatite / Nickel Plated E11 Mini-Candelabra Screw ceramic lampholder socket, for light bulbs like:
- EXY
- EYW
- EVR
- ESN
- ESM
- EHT
- EHV
- ESL
- ETG
- ETH
- Maximum Wattage: 1000 W
- Maximum Voltage: 250 V
- Maximum Operating Temperature: 300 C
- Qualifications UL Recognized – E31557 CSA Certifi ed – LR20904
- Body Material Steatite / Nickel Plated Steel

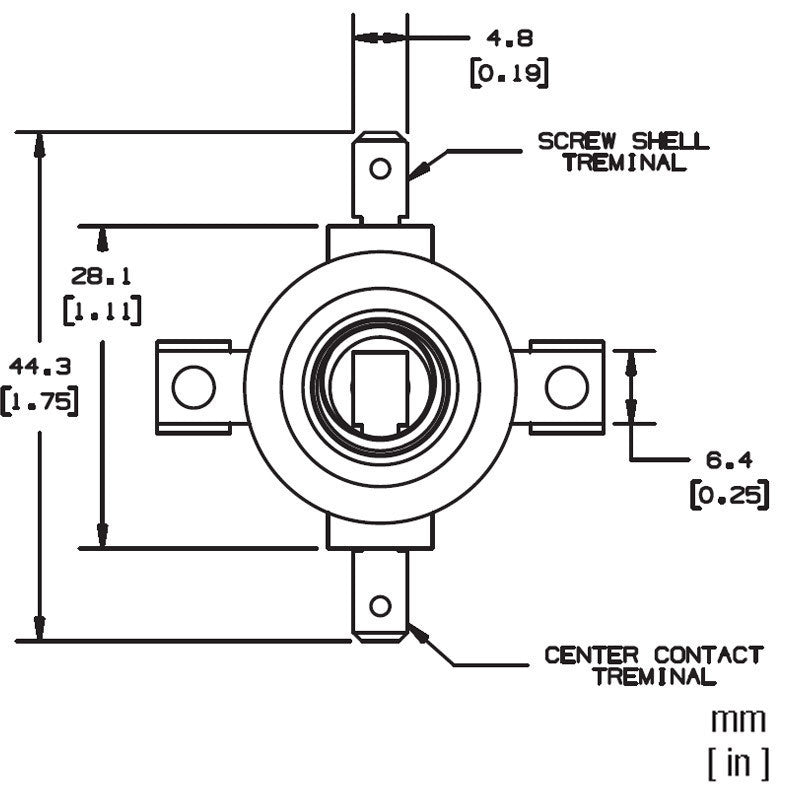

- Contact Material Screw Shell, Center Contact = Nickel Plated Brass
- Wire Leads AWG 18 minimum, 600 V / 200 C minimum
| Contact Material |
Nickel Plated Steel |
| Operation Temperature (F) |
572 |
| Voltage (V) |
250 |
| Wire Guage/Type |
12 inch 16AWG/UL |
