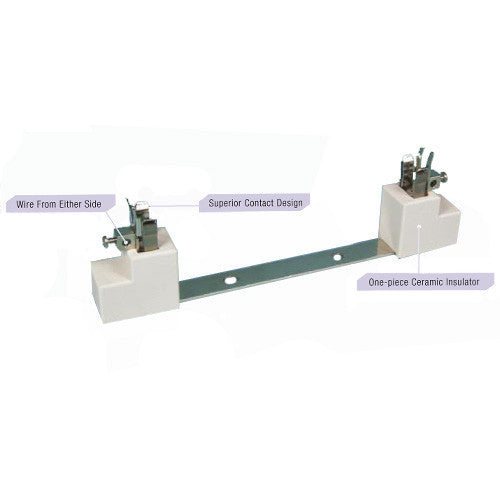

This lamp holder is for bulbs with SFC10-4 base, like:
- HMI 575 W/GS
- HTI 1200W/D7/60 SHARXS
- HTI 1200W/D7/75 SHARXS
- HTI 1500W/D7/60 SHARXS
- HTI 250W/D5/80 BABY SHARXS
- HTI 300W/D5/57 BABY SHARXS
- HTI 300W/D5/65 BABY SHARXS
- HTI 400W/D3/75 SHARXS
- HTI 400W/D5/60 BABY SHARXS
- HTI 575W/D4/60 SHARXS
- HTI 575W/D4/75 SHARXS
- HTI 575W/D5/56 BABY SHARXS
- HTI 700W/D4/60 SHARXS
- HTI 700W/D4/75 SHARXS
- MSR Gold 400W SA/2/DE
- MSR Gold 1200W SA/DE
- MSR Gold 1200W SA/2/DE
- MSR Gold 575 SA DE
- MSR Gold 700W SA/2/DE
- MSR Gold 1500W SA/DE
- BA 1200 DE/S

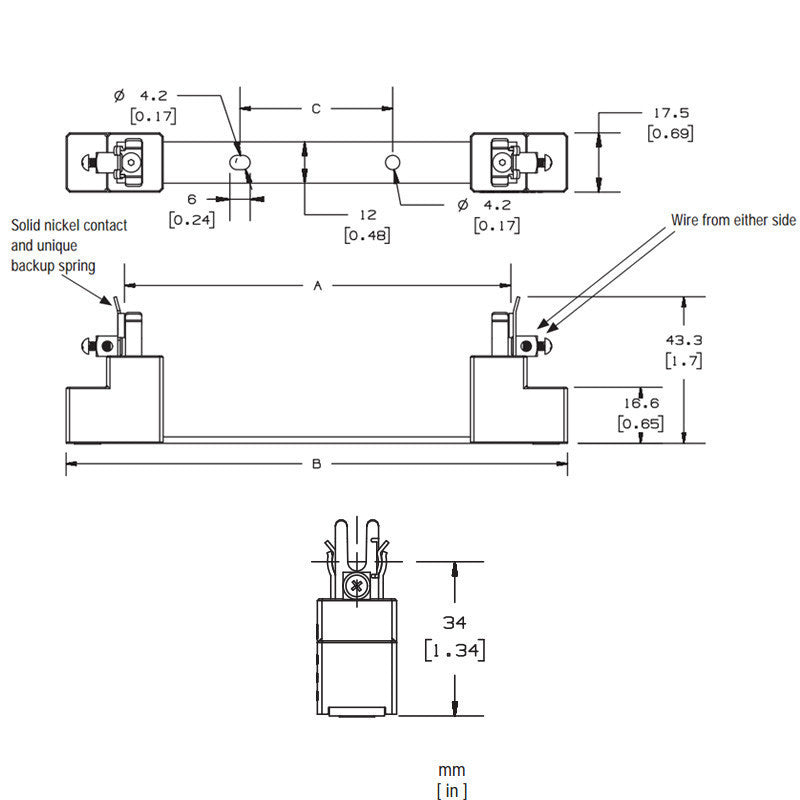

- Lamp Base Spacing (A): 4.52
- Lamp Wattage's: All SharXS HTI (5.31 in overall length)
- Pulse Rating: 25kV*
- Qualifications: UL Recognized-E31557, CSA Certified - LR209043
*Dielectric breakdown rating of 15kV as UL certified
| Application |
Socket |
| Contact Material |
Nickel Plated Nickel |
| Operation Temperature (F) |
482 |
| Type |

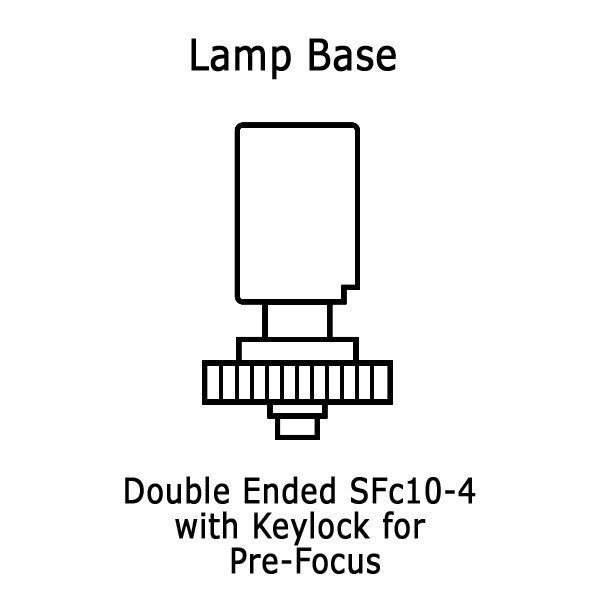

SFC10-4 |
| Voltage (V) |
1000 |
| Length (in) |
5.85 ± 0.05 |
